16 PIP Video Wall Controller
    Publish time 2022-03-12 19:28

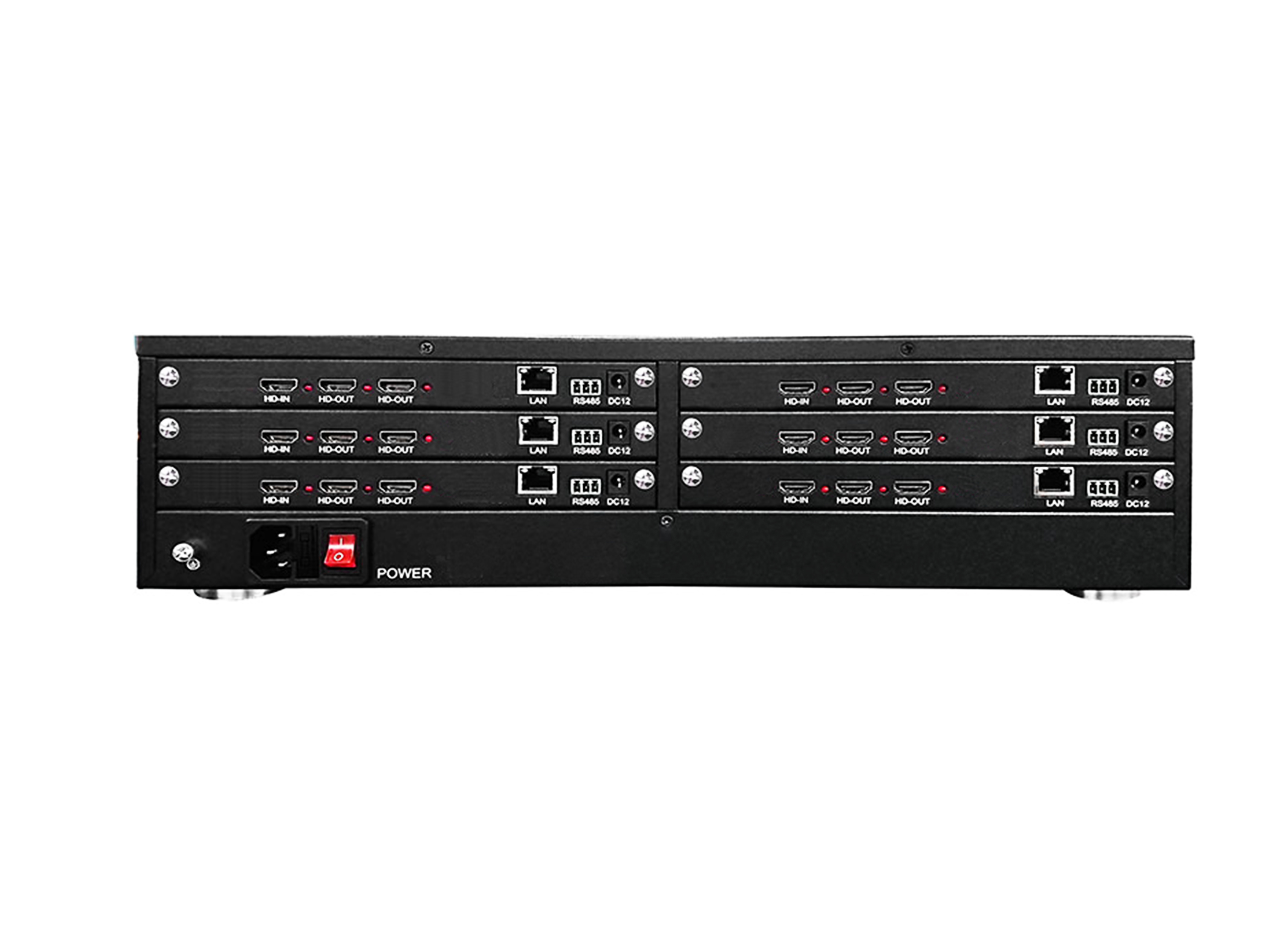

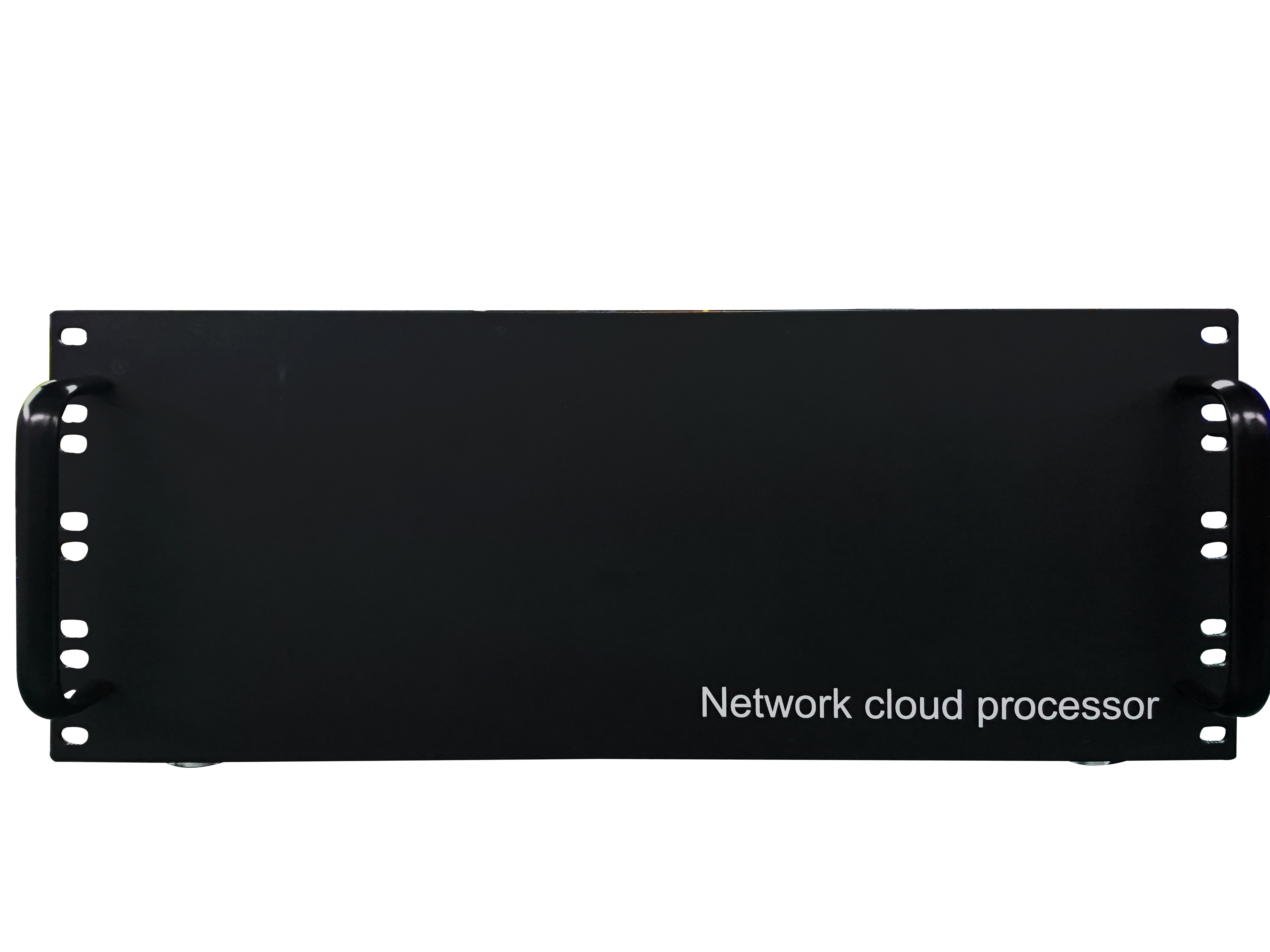

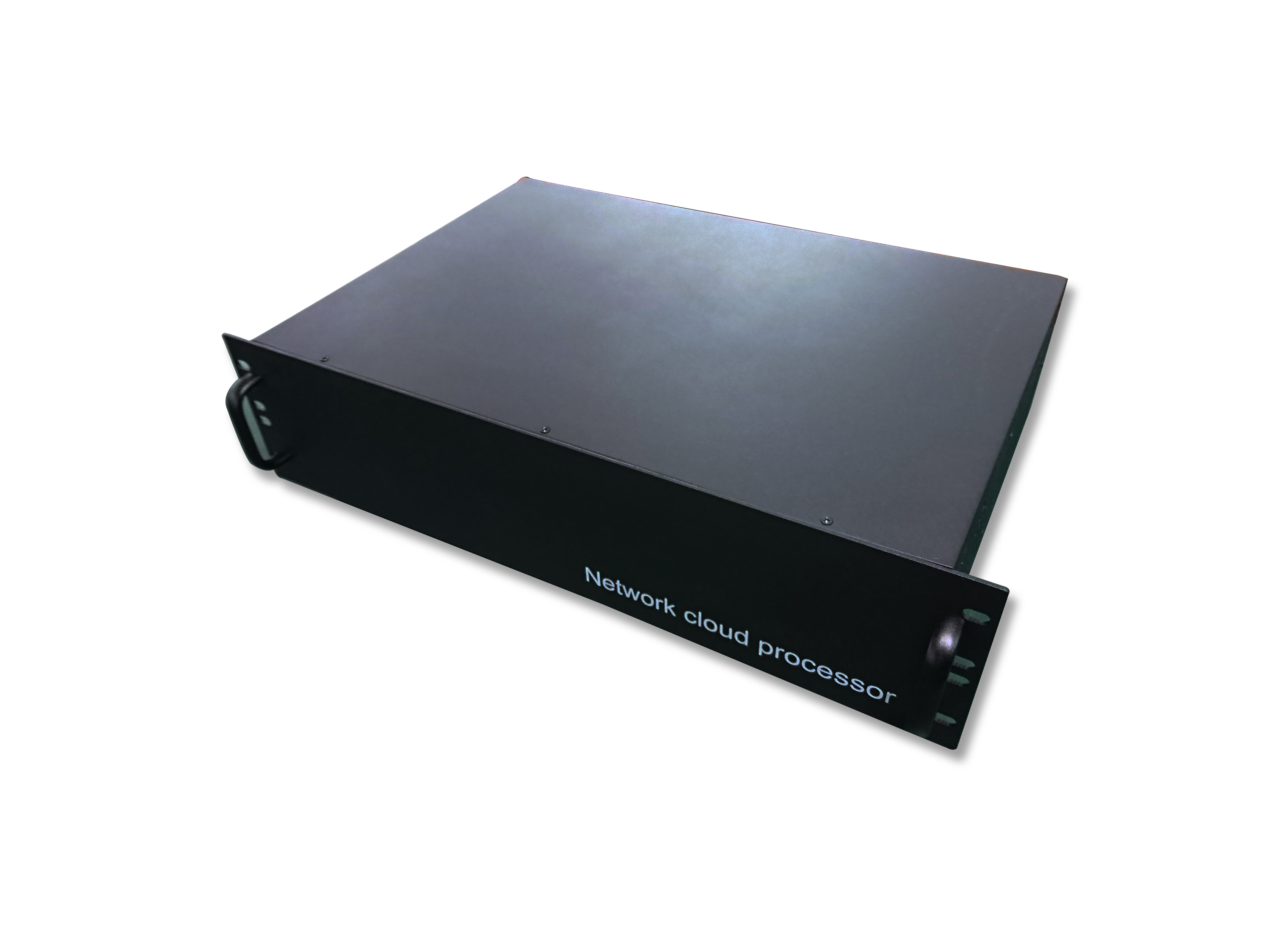

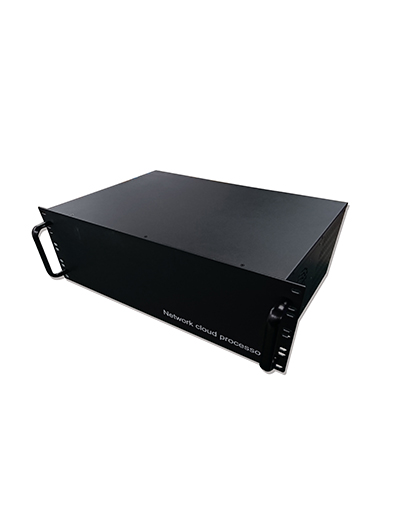

16 PIP Video Wall Controller

1.       Product detail



1.Window opening, superimposition, roaming, multi-screen, picture-in-picture, round tour, 16-25 layers of windows on a single screen, etc.

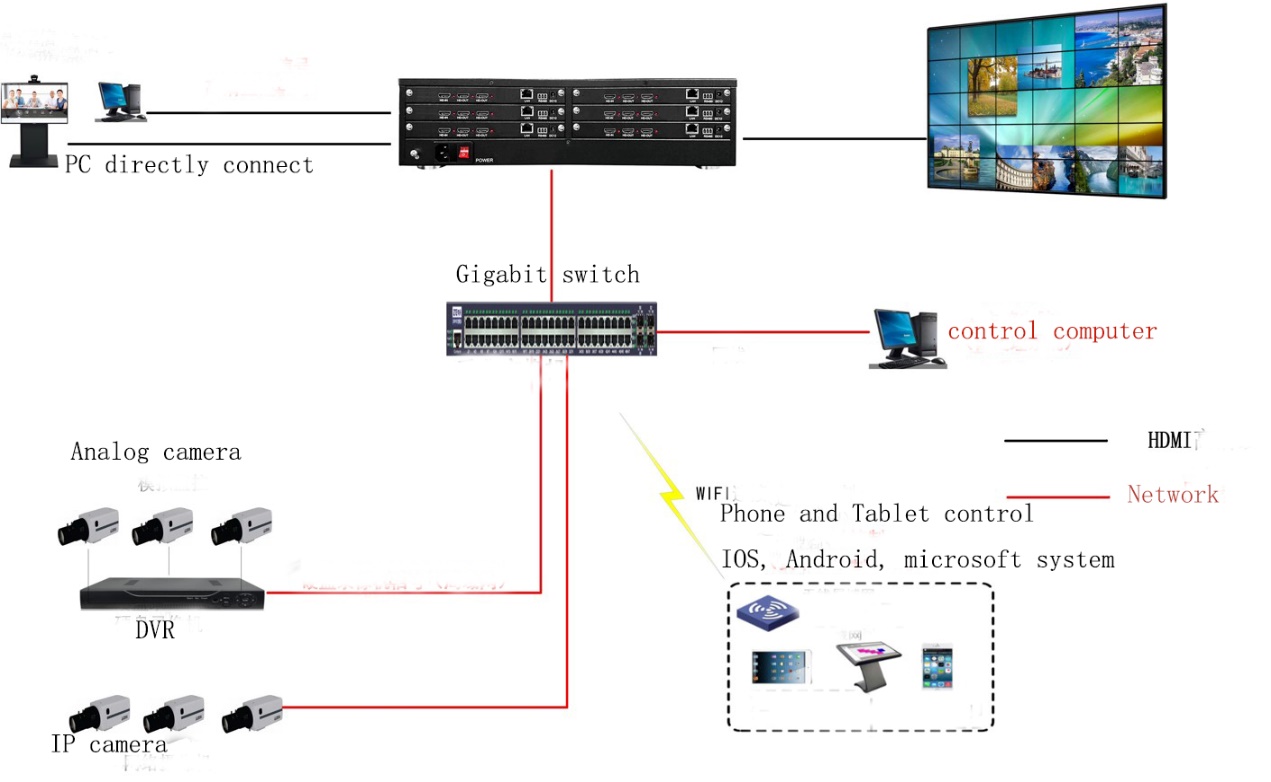

2.PC, ipad, mobile phone control

3.Decoding H.265 /H.264

4.2K/4K input and output

5.Virtual subtitles

6.Recall monitoring across network segments

7.HD signal, monitoring signal echo

8.Support flexible card allocation, more in, less out, less in and more out;

9.Scene plan, save, recall




3.       Parameter

Output Data

HDMI output port

2 screen/4screen

Output Resolution

4K:3840*2160@30HZ,1920*1080@60HZ,1366*768@60HZ,1024*768@60HZ or customize

Display function

Supports a single screen with a maximum   of 16 windows to automatically switch the code stream

Video and audio decoding parameters

Decoding resolution

800W@20fps、600W@25fps、500W及以下@25fps

decoding channel

Up to 16 images per screen

Decoding capability

Single screen supports 4-channel 800W, or   8-channel 500W/300W, or 16-channel 25-channel 1080P and below resolution;

Number of screen divisions

1/2/4/6/8/9/16

Number of windows on a single screen

Single screen up to 25 layers of windowing,   overlay, roaming

KVM agent management interface

Single-board 2-way KVM agent management interface   (optional

4K output

Single board 1 channel 4K output   (optional)

Lan Port

1 single board, RJ45 10M/100M/1000Mbps   adaptive Ethernet port

RS232 Port

1 standard 485 interface on the single   board

Audio input (audio board

Single-board built-in two-way mixed audio   and video input (for option)

Voice output(audio board

1 channel, 3.5mm audio interface (level:   2.0Vp-p, impedance: 1KΩ)

Network

Network protocol

IPv4/v6、UPnP、ONVIF、RTSP、TCP、UDP、GB28181

Other

Power

DC12V-2A

Working temperature

-20℃--+60℃

Working humidity

10%--90%
